OPTIMA KOMFORT EKO

5th grade: 9, 12, 14, 17, 19, 22, 24, 28, 35, 45 kW
Ecodesign: 9, 12, 14, 17, 19, 22, 24, 28, 35, 45 kW
Fuel:
węgiel kamienny sortymentu orzech 20-50mm
Optional equipment - for an additional fee: leveling feet

5 years warranty for the tightness of the heat exchanger, 2 years for other elements and efficient operation of the boiler - provided that it is installed in accordance with the boiler operation and maintenance manual;

Heat exchanger made of certified, high-quality steel;

Mechanical regulation of the combustion process using a knob in the ash pan door and a draft regulator;

The boiler is factory equipped with a thermostatic draft regulator;

Large charging chamber;

Secondary air supply regulation;

The boiler is suitable for installation in a closed system, provided that security measures are installed in accordance with the boiler operating instructions;

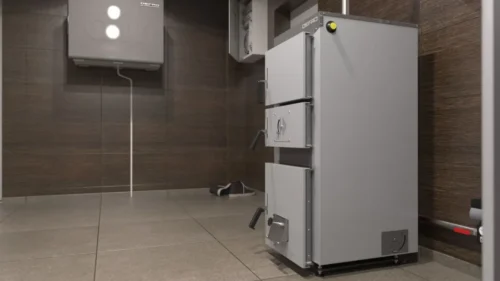

Optima Komfort Eko boilers are new generation feed boilers that meet strict Ecodesign standards at an exceptionally favorable price.



The new devices are characterized by high thermal efficiency, a spacious charging chamber and ceramic catalysts that support the combustion process.





Boiler specification/type
J.m. 9 12 14 17 19 22 24 28 35 45
Fuel

hard coal – walnut with granulation 20-50 mm

hard coal – walnut with granulation 20-50 mm hard coal – walnut with granulation 20-50 mm hard coal – walnut with granulation 20-50 mm hard coal – walnut with granulation 20-50 mm hard coal – walnut with granulation 20-50 mm hard coal – walnut with granulation 20-50 mm hard coal – walnut with granulation 20-50 mm hard coal – walnut with granulation 20-50 mm hard coal – walnut with granulation 20-50 mm

Min. safe capacity of the accumulation tank

l 450 600 750 900 1000 1200 1300 1500 1800 2600

Filling chamber capacity

kg ~14 ~19 ~20 ~23 ~25 ~31 ~33 ~35 ~35 ~45

Thermal efficiency for nominal power


% 90,0 91,0 90,8 90,1 90,4 89,9 90,4 90,7 90,0 89,7

Energy efficiency class

B B B B B B B B B B

Max. permissible working pressure


bar 1,5 1,5 1,5 1,5 1,5 1,5 1,5 1,5 1,5 1,5

Required exhaust gas draft


Pa 22 16 26 22 26 24 30 30 32 31

Supply water temperature min/max.

°C 65/90 65/90 65/90 65/90 65/90 65/90 65/90 65/90 65/90 65/90
Boiler weight
kg ~262 ~275 ~300 ~300 ~335 ~355 ~395 ~430 ~465 ~515
Boiler water capacity
l 58 63 76 68 83 81 96 107 119 132

Diameter of the supply/return connection

cal 1 ½ ’’ 1 ½ ’’ 1 ½ ’’ 1 ½ ’’ 1 ½ ’’ 1 ½ ’’ 1 ½ ’’ 1 ½ ’’ 1 ½ ’’ 1 ½ ’’
Flue diameter
mm 159 159 159 159 159 178 178 194 194 245
Height
mm 1150 1165 1192 1165 1192 1295 1315 1445 1537 1642
Width
mm 432 432 432 482 482 432 432 482 482 632
Depth
mm 833 893 987 893 987 893 987 943 943 943
